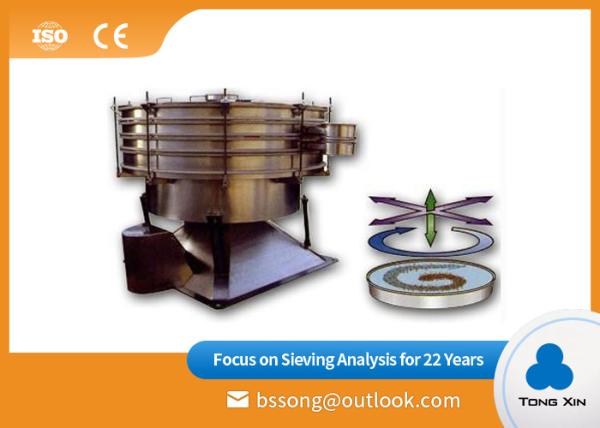

Pearl Powder Tumbler Screen High Efficiency High Yield Stainless Steel
Overview of Swing Screen
Swing screen is a special design of a new efficient screening machine in order to meet the requirements of large output and high density screening. The simple sifting is done by looking at the screen with eyes and screening with hands. The shaking sifting machine is a mechanical with simulation of that.And according to the physical characteristics of the material, the customer's different screening requirements for independent adjustable speed, eccentricity, radial force to adjust, change the material in the screen surface stay time and movement route, in order to achieve a good screening effect.
Structural Principle of Swing Screen
The basic rotary motion is similar to manual screening. The residence time of each material can be adjusted by swinging the radial and corner cut of the sieve towards the driving axis. So that build up a horizontal and throw 3D roll motion. material from the center to the outer edge is evenly dispersed on the whole screen surface, thus propagating axially with spiral movement. This completes the whole screening process of fine particles.
Structural Principle of Swing Screen
- For fine and hyperfine powder screening, especially for materials difficult to deal with.
- Effective imitation of manual screening action and process, the material in the screen surface presents a gradual opening spiral movement, so that the material in the relative area have a relatively long journey, screening accuracy up to 90-95% !
- Soft swing screening, will not damage the original structure of wool particles, not easy to generate static electricity, for flammable material, explosive material and easy to generate static electricity material is a good choice, and effectively extend the life of equipment components.
- Anti-blocking technology is advanced diversified, five different cleaning methods: bounce ball cleaning mesh surface, roller brush cleaning mesh surface, air jet cleaning mesh surface, elastic scraper cleaning mesh surface,and ultrasonic technology cleaning mesh surface, so the screen hole will not be blocked, to ensure the continuity of screening.
- Round modular assembly structure, simple installation and strip. The outlet can rotate 360 degrees at will.
- The vertical acceleration value of material particles is low, which makes the screen not easy to be damaged and extends the service life of the screen.
- Noise as low as 80 dBa, completely closed operation, more environmentally friendly.
- Uses the ordinary motor as the power source.
Application Industry
Wide range of application:
Coal, ore, geology, electricity, food, building materials, coatings, abrasives, defense industry, metallurgy.
Technology Parameter
| Type | YBS600 | YBS1000 | YBS1200 | YBS1600 | YBS2000 | YBS2400 | YBS2600 |
| Diameter (mm) | 600 | 1000 | 1200 | 1600 | 2000 | 2400 | 2600 |
| Sieving area (㎡) | 0.29 | 0.71 | 1.11 | 1.83 | 2.62 | 3.63 | 5.31 |
| Space requirement (㎡) | 0.4 | 1.2 | 1.6 | 2.5 | 3.6 | 5.2 | 6.8 |
| Maximum layer of screen | 5 |
Please Contact us for more details!
